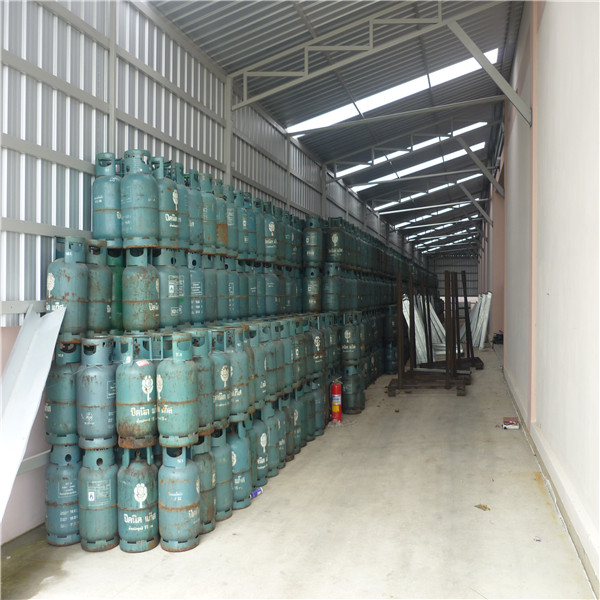

LPG cylinder reconditioning line is used for the used LPG cylinder testing and refurbishment, which is also applied for propane gas bottles, LPG cooking gas cylinder, LPG vehicle cylinder, propane cylinders.
According to the regulations worldwide, different nations will have different policy for the used cylinder reconditioning. Such as China for example, the used cylinders will have to be tested very 2~3 years. The refurbishment of the cylinder surface like painting will benefit its selling and using. But the dent fixing is strictly forbidden in China. While in other regions dent fixing is acceptable.
And in a lot nations, the used LPG valves can be recycled as long as it passed the testing. But in some nations, the LPG valves have to be replaced with new ones.
So in short, the full LPG cylinder reconditioning plant equipment is not fixed. It will change according to the local regulation and standard. Anything you’re interested in the LPG cylinder reconditioning or LPG cylinder refurbishment, please don’t hesitate to contact THLPG.
Wish to hear from you soon.
Reference List For LPG cylinder repairing line
| No. | Equipment name | Unit | Qty | Remark |
| 1 | Residual liquid removal machine | Set | 1 | Used for the recycling of residual gas and liquid in LPG cylinder Working efficiency: 150 cylinders/hour for 12kg 40~60 cylinders/hour for 45kg&50kg |
| Manual type pour residual frame | Set | 1 | Used for 45kg&50kg | |

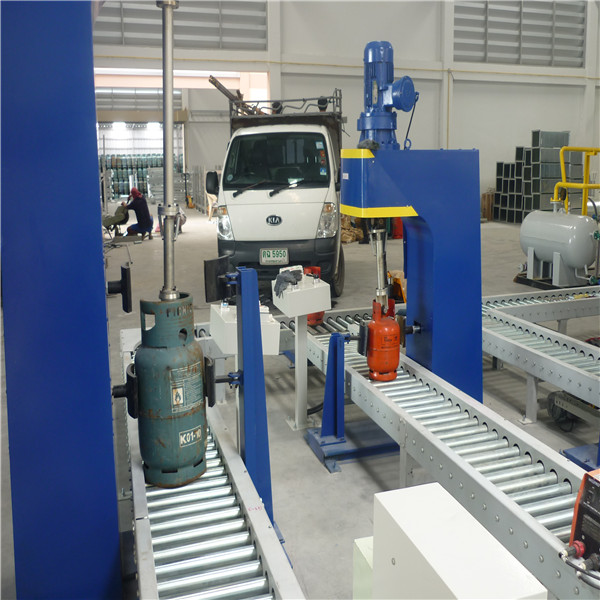

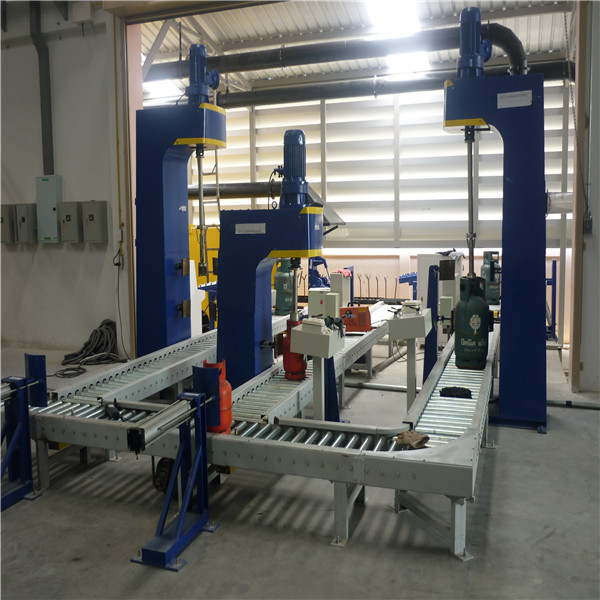

| 2 | Valve mounting and dismantling machine(dismantling) | Set | 1 | Anti-explosion Working efficiency: 150 cylinders/hour 40~60 cylinders/hour for 45kg&50kg |
| 3 | LPG Cylinder incinerator furnace | Set | 1 | 6 sections of furnace body, 2 sets of burned gas and equipped burner, 1 piece of residual gas nozzle Working efficiency: 150 cylinders/hour for 12kg 40~60kg cylinders/hour for 45kg&50kg |
| 3.1 | cylinder loading and unloading device | set | 1 | |
| 3.2 | Devulcanizing and dust removing device | Set | 1 | |
| 4 | Semi-Automatic Hydro water pressure testing machine(12kg) | Set | 2 | Used for 12kg, Rotation type, 6 stations. Working efficiency: 125 cylinders/hour |
| Semi-Automatic Hydro water pressure testing machine(45kg&50kg) | Set | 1 | Used for 45kg&50kg. 2 stations. Working efficiency: 30 cylinders/hour |
|
| 5 | Shot blasting derusting machine | Set | 1 | The machine is composed by a machine body, shot blasting machine, transmission device, dedusting system and electric control system. Working efficiency: 1200pcs/per 8 hours shift for 12kg 480 cylinders/per 8 hours for 45kg&50kg |
| 6 | Powder coating line | set | 1 | Gas heating, 3 sets of powder supply system, Working efficiency: 1200pcs/per 8 hours shift for 12kg 480pcs/per 8 hours for 45kg&50kg |
| 7 | Valve mounting and dismantling machine(mounting) | Set | 1 | Used for 12kg, 45kg&45kg Normal, Working efficiency: 150 cylinders/hour |
| 8 | Air leakage testing machine | Set | 1 | Used for 12kg, 6 stations, the machine can operate in single machine and match with automatic flowing production line. bigger compressed air tank, to assure 150pcs/hour |
| Air leakage testing machine | Used for 45kg&50kg. 4 stations. Working efficiency: 40~60 cylinders/hour |
|||
| 9 | Valve alignment table | Set | 2 | The machine is used to align the LPG cylinder valve Working efficiency: 75 cylinders/hour/per machine |
| 10 | Printing machine(12kg) | Set | 1 | Used for 12kg. The machine adopts the scraper printing principle, it is suitable for cylinder inspection center and cylinder manufacturer. It is ideal LPG cylinder printing equipment. 1200pcs/per 8 hours shift |
| Printing machine(45kg&50kg) | Set | 2 | Used for 45kg&50kg. Working efficiency: 40~60 cylinders/hour |
|
| 11 | Semi-automatic Zinc Metalizing line(Option A) | Set | 2 | 12kg: 60pcs/hour/set 45kg&50kg: 30pcs/hour/set |
| 12 | Semi-automatic Zinc Metalizing line(Option B) | Set | 2 | 12kg: 90pcs/hour/set 45kg&50kg: 60pcs/hour/set Completed with environmental protection device |
| 13 | Fully-automatic Zinc Metalizing line(Option C) | Set | 1 | Used for 12kg, 45kg&50kg 2000pcs per shift for 12kg 480pcs per shift for 45kg&50kg |
| 14 | Conveying chain(straight chain) | M | This is the unit price, the specific length according to layout | |
| Curved conveying chain | PC | |||
| Curved conveying chain | PC | |||
| Conveying chain power | Set |
